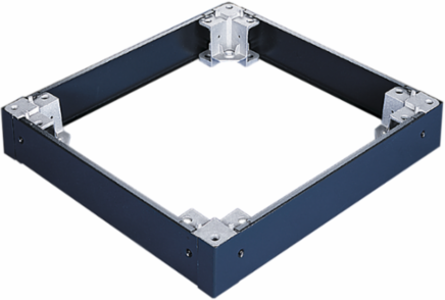

nVent Hoffman P2BP166 ProLine G2 100mm Plinth Base, fits 600x600mm, Black, Steel
- MPN: P2BP166
- UPC: 783510310936
- PPN: HOF-P2BP166
- UNSPSC: 39121334
CAD
$386.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Plinth Bases install under an enclosure to provide space for cables to enter from below. This ProLine G2 100mm Plinth Base, P2BP166 item fits 600x600mm with a material of Steel colored Black.
Features
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
Documentation & Downloads
Specifications
Additional
| Height (H) | 100 mm |
|---|---|
| Depth (D) | 564 mm |
| Color | Jet Black, RAL 9005 |
| Finish | Powder Coated, Polyester powder paint textured |
| Fits Frame Size | 600 x 600 mm |
| Corner Supports Material | Cast aluminum |
| Product Family | ProLine |
| Works With | NEMA |
| Width (W) | 599 mm |
|---|---|
| Material | Mild Steel |
| Thickness (T) | 1.52 mm |
| Stackable Height | 400 mm |
| Environmental Rating | NEMA Type 12 (with gland plate) |
| Weight | 15 kg |
| Sub Brand | ProLine |
