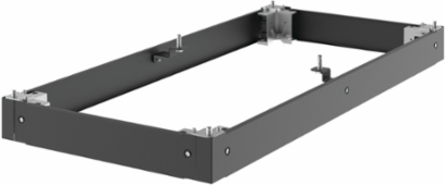

nVent Hoffman P2BP1D124 ProLine G2 Disconnect Plinth Base, 100mm, fits 1200x400mm, Black, Steel
- MPN: P2BP1D124
- UPC: 783510350567
- PPN: HOF-P2BP1D124
CAD
$534.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Disconnect Plinth Base, 100mm, fits 1200x400mm, Black, Steel
Features
- Solution for disconnect enclosures widths >1000 mm wide
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Color
- Jet Black
- Finish
- Powder Coated
- Works With
- NEMA
Product FamilyProLine
Weight13.24
Color CodeRAL 9005
Thickness (T)16
