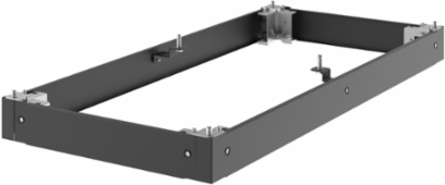

Nvent Hoffman P2BP2124 ProLine G2 200-mm Plinth Bases, fits 1200x400mm, Black, Steel
Nvent Hoffman P2BP2124 ProLine G2 200-mm Plinth Bases, fits 1200x400mm, Black, Steel
- MPN: P2BP2124
- UPC: 783510311179
- PPN: HOF-P2BP2124
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$693.54/ EA
Features
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,199
- Product Family
- ProLine
- Finish
- Powder Coated
- Color Code
- RAL 9005
- Weight
- 32
- Sub Brand
- ProLine
Height (H)193
Depth (D)364
MaterialMild Steel
ColorJet Black
Thickness (T)1.52
Works WithNEMA
