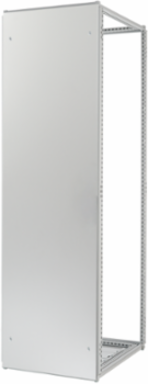

nVent Hoffman P2C185 ProLine G2 Solid Cover (Front or Rear), fits 1800x500mm, Painted
- MPN: P2C185
- UPC: 783510329389
- PPN: HOF-P2C185
- UNSPSC: 39121334
CAD
$420.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Solid Cover (Front or Rear), fits 1800x500mm, Painted
Features
- Hinge hanger on top for easy alignment
- Formed steel hems on the sides of the covers for enhanced structural support and to protect user from sharp edges
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Attach to enclosure frame with low-profile, flat head screws
- Door can be reversed without removing the side covers
- Used on the sides of the ProLine G2 frame
- Not suitable as a barrier between enclosures (instead use the ProLine G2 barrier panel)
- Two grounding studs
- All mounting hardware included
- Solid Covers are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Additional
- Height (H)
- 1,783 mm
- Thickness (T)
- 1.52 mm
- Finish
- Powder Coated over plated surfaces
- Fits Frame Size
- 1800x500 mm
- Grounding Studs
- Two
- Mounting Hardware
- Included
- Application
- Front or rear cover substitute for door
- Works With
- NEMA
- Product Family
- ProLine
Width (W)498 mm
MaterialMild Steel, 16 gauge (1.5 mm)
Weight51
Seal TypeSeamless polyurethane gasket (UL recognized)
Structural SupportFormed steel hems on sides
FastenersLow-profile, flat head screws
ColorLight Gray, RAL 7035
Sub BrandProLine
