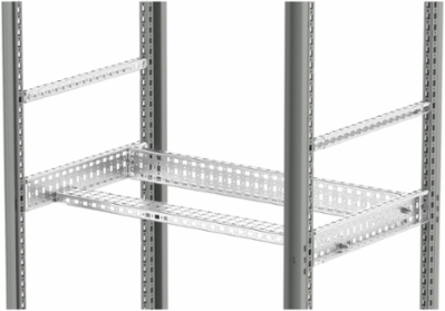

Nvent Hoffman P2G1R6 ProLine G2 Grid Strap 1-Row, 600mm, Galvanized, Steel
Nvent Hoffman P2G1R6 ProLine G2 Grid Strap 1-Row, 600mm, Galvanized, Steel
- MPN: P2G1R6
- UPC: 783510318659
- PPN: HOF-P2G1R6
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$106.29/ EA
Description
ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. This ProLine G2 Grid Strap 1-Row, P2G1R6 item measures 600mm with a material of Steel, Galvanized.
Features
- Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
- Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
- Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
- Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
- Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be mounted vertically between other Grid Straps, as the assembly is on a single plane
- Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid Straps, as the jogged tab introduces a second plane which may interfere with cover installation on the sides
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 24
- Product Family
- ProLine
- Fits Frame Width
- 500
- Weight
- 2.7
- Thickness (T)
- 1.9
- Sub Brand
- ProLine
Height (H)25
Depth (D)440
MaterialMild Steel
Fits Frame Depth600
FinishGalvanized
Works WithNEMA
