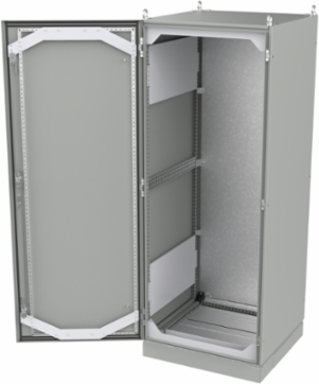

nVent Hoffman P2K1888S ProLine G2 Industrial Packages Seismic, 1800x800x800, Lt Gray, Steel
- MPN: P2K1888S
- UPC: 783510362072
- PPN: HOF-P2K1888S
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Seismic Industrial Packages aresolutions capable of withstanding Zone 4 seismic activity. This ProLine G2 Industrial Packages Seismic, P2K1888S item measures 1800x800x800mm with a material of Steel colored Lt Gray.
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Consistent with Type-12 Industrial Packages, but reinforced in all directions using seismically capable components/accessories to withstand forces present in seismic areas with a Zone-4 risk assignment
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Single door includes robust 3-point latch system to maintain door closure during seismic activity, with gussets included at the top and bottom of the door to increase rigidity
- Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
- Door bar system and two grounding studs present
- Single door left-hinged standard, with Key-locking Flush Swing Handle standard
- Galvanized Duro-Stand gland plate included
- 100-mm Fully-Sealed Base with seismic mounting into frame's welded steel corners
- Seismic Floor Mounting Brackets supplied loose for affixing enclosure to floor
- White painted full subpanel fully recessed in rear-most mounting position: EZ-Load Glide Blocks supplied only in the front to support rear-most subpanel position
- Top and bottom panel brackets, panel support brackets (side), and panel wedges to secure a populated subpanel are incorporated in the design
- Gussets mounted to the frame's door opening at the top and bottom
- White painted partial subpanels at top and bottom of frame's sides, unique seismic design
- Depth-mounted 3-row Grid Strap at mid-point of frame
- Solid Side Covers included standard
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 808
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color
- Light Gray
- Thickness (T)
- 1.9
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,802
Depth (D)805
Product FamilyProLine
FinishPowder Coated
Color CodeRAL 7035
Max Subpanel Size67.2 x 28.7
Weight474
