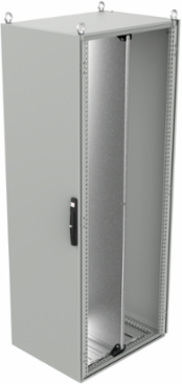

nVent Hoffman P2K20106T3R ProLine G2 Industrial Packages Type 3R, 2000x1000x600, Lt Gray, Steel
- MPN: P2K20106T3R
- UPC: 783510361945
- PPN: HOF-P2K20106T3R
CAD
$3827.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Industrial Packages are ready-to-use solutions in Type 3R environments. This ProLine G2 Industrial Packages Type 3R, P2K20106T3R item measures 2000x1000x600mm with a material of Steel colored Lt Gray.
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Consistent with Type-12 Industrial Packages, fasteners/brackets material upgraded to limit oxidation
- Smooth glide latching system on door for a solid seal with a low closure force
- Galvanized Duro-Stand gland plate base
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
- Door bar system and two grounding studs present
- Single/primary door includes 3-point roller latch system with timed latch engagement
- 2-door enclosures include overlapping double doors to provide full-width open front; secondary door latches with two levers
- Reversible hinging on single doors (default left hinge) and overlapping double doors (default right door primary)
- Padlocking Flush Swing Handle standard, other options available
- Mounting Subpanel includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
- Subpanel is securely fastened to the top and bottom of the frame; enclosures narrower than 1200 mm use 4 sets of EZ-Load Glide Blocks, while enclosures equal to or wider than 1200 mm use 8 sets of glide blocks for a well secured subpanel
- Subpanel is depth adjustable, back-to-back subpanel configuration possible with purchase of second subpanel (sold separately)
- Galvanized, full-height subpanel supplied standard, white painted subpanel available (sold separately)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,008
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color
- Light Gray
- Max Subpanel Size
- 75.0 x 36.5
- Max Rack Mount Unit
- 42
- Weight
- 306.19
Height (H)2,002
Depth (D)605
Product FamilyProLine
FinishPowder Coated
Color CodeRAL 7035
Door Quantity1
NEMA Rating12 Indoor, dust-resistant
