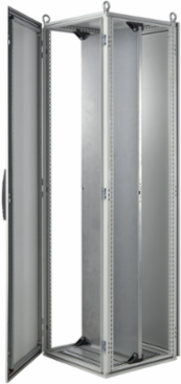

Nvent Hoffman P2K22105 ProLine G2 Industrial Packages Type 12, 2200x1000x500, Lt Gray, Steel
Nvent Hoffman P2K22105 ProLine G2 Industrial Packages Type 12, 2200x1000x500, Lt Gray, Steel
- MPN: P2K22105
- UPC: 783510320669
- PPN: HOF-P2K22105
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3966.31/ EA
Description
ProLine G2 Industrial Packages are full-featured, ready-to-use enclosure solutions. This ProLine G2 Industrial Packages Type 12, P2K22105 item measures 2200x1000x500mm with a material of Steel colored Lt Gray.
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combination, and can accommodate a mounting subpanel just front of fully-recessed position
- Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
- Door bar system present on all doors (including window doors)
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
- 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
- Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
- Two grounding studs present on each door
- Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
- Galvanized Duro-Stand Gland Plate present
- Mounting subpanel includes EZ-Load Glide Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame); Subpanel is securely fastened to the top and bottom of the frame.
- Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks; enclosures ≥1200 mm use 8 sets of glide blocks for a well-secured subpanel
- Galvanized, full-height subpanel is supplied standard; subpanel is depth adjustable, with back-to-back subpanel configuration possible; white painted subpanel available (sold separately)
- Refer to separate specifications for more complete details of individual components
- Note that side covers are sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,008
- Product Family
- ProLine
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Door Quantity
- 1
- Weight
- 445
Height (H)2,202
Depth (D)505
MaterialMild Steel
ColorLight Gray
Max Subpanel Size82.9 x 36.5
Max Rack Mount Unit47
Sub BrandProLine
