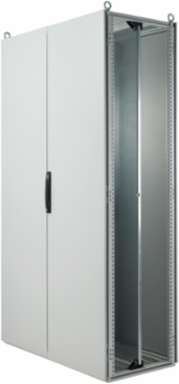

nVent Hoffman P2KOD20166 ProLine G2 Industrial Packages Type 12 2Dr, 2000x1600x600, Lt Gray, Steel
- MPN: P2KOD20166
- UPC: 783510323035
- PPN: HOF-P2KOD20166
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Industrial Packages are full-featured, ready-to-use enclosure solutions. This ProLine G2 Industrial Packages Type 12 2Dr, P2KOD20166 item measures 2000x1600x600mm with a material of Steel colored Lt Gray.
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combination, and can accommodate a mounting subpanel just front of fully-recessed position
- Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
- Door bar system present on all doors (including window doors)
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
- 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
- Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
- Two grounding studs present on each door
- Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
- Galvanized Duro-Stand Gland Plate present
- Mounting subpanel includes EZ-Load Glide Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame); Subpanel is securely fastened to the top and bottom of the frame.
- Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks; enclosures 1200 mm use 8 sets of glide blocks for a well-secured subpanel
- Galvanized, full-height subpanel is supplied standard; subpanel is depth adjustable, with back-to-back subpanel configuration possible; white painted subpanel available (sold separately)
- Refer to separate specifications for more complete details of individual components
- Note that side covers are sold separately
Documentation & Downloads
Specifications
Additional
- Height
- 2002 mm
- Depth
- 605 mm
- Max Rack Mount Unit
- 42
- Weight
- 548 lb
- Finish
- Powder Coated
- Sub Brand
- ProLine
- Frame Thickness
- 12-gauge (2.5 mm) Steel
- Mounting Subpanel Features
- EZ-Load Glide Blocks, depth adjustable, back-to-back configuration possible
- Handle Type
- Low-Profile Flush Swing Handle with key lock (standard), double bit lock on 'E' version
- Gasket Compliance
- UL recognized, CSA compliant
- Seal Type
- Water-tight, dust-tight
- DIN Rail Standard
- 25-mm DIN standard alternating rectangular and round hole pattern
- Enclosure Assembly
- Single-piece rear cover ( 1200 mm width), two rear covers with removable center upright (>1200 mm width)
Width1608 mm
Door Quantity2
Max Subpanel Size75.0 x 60.2 mm
MaterialMild Steel
ColorLight Gray (RAL 7035)
Product FamilyProLine
Mounting Subpanel MaterialGalvanized Steel
Door FeaturesOverlapping double doors, reversible hinging, Smooth Glide Latching System with 3-point roller latch
Gasket MaterialSeamless polyurethane
Frame ProfileHybrid frame profile with welded corners
GroundingTwo grounding studs per door
Bay CountDouble
