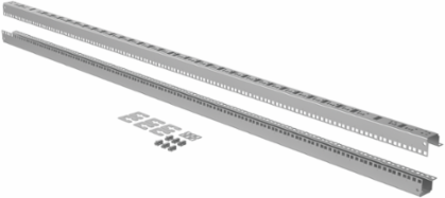

nVent Hoffman P2RA19S20 ProLine G2 19-Inch Rack Angle Sq Hole, 2000mm, Conductive, Steel
nVent Hoffman P2RA19S20 ProLine G2 19-Inch Rack Angle Sq Hole, 2000mm, Conductive, Steel
- MPN: P2RA19S20
- UPC: 783510326135
- PPN: HOF-P2RA19S20
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$344.62/ EA
Description
ProLine G2 Rack Angles mount with BV-M6 fasteners allowing attachment of rack-mount equipment. This ProLine G2 19-Inch Rack Angle Sq Hole, P2RA19S20 item measures 2000mm with a material of Steel, Conductive.
Features
- Furnished in pairs
- Can be mounted directly to the frame, or at variable depths using Adjustable Rack-Mounting Rails or Grid Straps; when mounted to the frame there is 44mm between the door opening and the Rack Angle mounting surface
- Single-bay Frames: in a 600-mm wide frame, Rack Angles can be mounted in-line with the frame; in an 800-mm wide frame, Adjustable Rack-Mounting Rails or Frame Reducing Brackets are required (sold separately) to achieve the 19-inch rack spacing
- Double-Bay Frames: in a 1200-mm wide frame, Center Uprights must be used to create a mounting surface in the center of the enclosure for either bay; in a 1600-mm frame, Center Uprights are again required in addition to Frame Reducing Brackets or Adjustable Rack-Mounting Rails to achieve the 19-inch rack spacing
- Tapped-Hole Rack Angles accommodate 10-32 screws for equipment mounting
- Square-Hole Rack Angles accept both metric and English cage nuts and screws: most commonly M5, M6, and 10-32 screws
- Optional Shelves, Drawers, and Guides require two sets of Rack Angles to secure within the frame
- All mounting hardware for Rack Angle installation into the frame is included; mounting hardware for securing rack-mount equipment/accessories to the Rack Angles is either supplied with the item or purchased separately
- Tapped Rack Angles are constructed from 12 gauge (2.5 mm) conductive steel, while Square-Hole Rack Angles are from 14 gauge (1.75 mm) conductive steel
- Load rating of 20 lbs (9.1 kg) per rack unit for equipment under 20-inches (508 mm) in depth; All equipment over 20-inches in depth requires rear rack angles for support
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 65
- Product Family
- ProLine
- Hole Type
- Square
- Weight
- 17
- Thickness (T)
- 14
- Sub Brand
- ProLine
Height (H)1,913
Depth (D)48
MaterialMild Steel
Rack Units43
FinishPlated
Works WithNEMA
