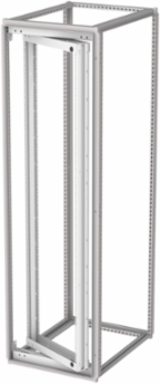

nVent Hoffman P2RSFH148 ProLine G2 Heavy-Duty Swing-Out Rack Frame, 1400x800, Light Gray, Steel
- MPN: P2RSFH148
- UPC: 783510330170
- PPN: HOF-P2RSFH148
CAD
$1235.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Heavy-Duty Swing-Out Rack Frame, 1400x800, Light Gray, Steel
Features
- Three pivot options for maximum flexibility (center, left, right)
- Complies with ANSI/EI A RS-310-D rack-mounting standards
- Mounts to inside of frame at any vertical location; can be located at any depth using grid straps/rail system; deeper mounting affects the degree of opening of swing-out frame
- Rack Frames are available for 600- and 800-mm wide enclosure frames; for 600-mm wide enclosures, the rack frame uses the full width; for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the center
- Can be installed in right, left or both bays of 1200-mm wide frames using center uprights; frame reducing brackets may also be used to accommodate a variety of frame widths
- Center pivot option allows 350-degree rotation; left or right offset option allows 140-degree rotation and swings frame partially out of outer frame; optional hinges allow 170-degree rotation and swing frame completely out of outer frame
- Has cutouts to mount Frame Tie-Down Brackets (not included) for cable management
- Full-height swing-out rack frames are mounted to the top and bottom of the enclosure frame; smaller swing-out rack frames can be mounted to the vertical frame members or to the grid straps (order separately)
- Furnished with quarter-turn latch, mounting hardware and mounting brackets
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Weight
- 2
- Color Code
- RAL 7035
- Thickness (T)
- 12
Product FamilyProLine
Rack Units25
ColorLight Gray
FinishPowder Coated
Works WithNEMA
