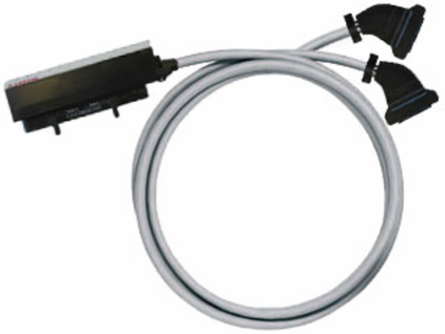

Weidmuller 7789042080 PAC-CTLX-HE20-V3-8M
- MPN: 7789042080
- PPN: WDM-7789042080
CAD
$964.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²
Specifications
General Data
- Connector PLC side
- ROCKWELL CONTROL LOGIX 1756-TBCH 36P
- Number of poles, min.
- 20-pole
- Cable
- Cable LiYY
- Material
- PVC
Interface connectorFLAT CABLE CONECTOR HE10 20P
Outer diameter8.6 ± 1 mm
Cable length8 m
Wire cross-section0.25 mm²
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 1,794 g
Electrical Data
- Rated voltage (text)
- ≤ 60 Vdc ≤ 25 Vac
- Total current, max.
- 3 A
- High voltage test
- 1 KV/1s
Permissible current strength per path, max.1 A
Resistance≤ 80 mΩ/m
Classifications
- ETIM 6.0
- EC000237
- eClass 9.0
- 27-24-22-20
- eClass 10.0
- 27-24-22-20
ETIM 7.0EC000237
eClass 9.127-24-22-20
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -10...50 °C
Operating temperature, min.-10 °C
Storage temperature, min.-10 °C
Storage temperature-10...60 °C
