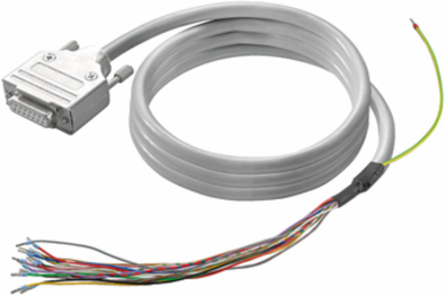

Weidmuller 1440810010 PAC-HD15M-F-V0-1M
- MPN: 1440810010
- PPN: WDM-1440810010
CAD
$149.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PAC-HD15M-F-V0-1M
Documentation & Downloads
Specifications
General Data
| Connector PLC side | H0.25/10 (FERRULES 0.25mm²) |
|---|---|
| Number of poles, min. | 15-pole |
| Cable | Cable LiYCY |
| Material | PVC |
| Interface connector | SUB-D HD male 15P |
|---|---|
| Outer diameter | 8.7 ± 1 mm |
| Cable length | 1 m |
| Wire cross-section | 0.25 mm² |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 166 g |
|---|
Electrical Data
| Rated voltage (text) | ≤ 250 Vdc ≤ 250 Vac |
|---|---|
| Total current, max. | 3 A |
| High voltage test | 1 KV/1s |
| Permissible current strength per path, max. | 1 A |
|---|---|
| Resistance | ≤ 80 mΩ/m |
Classifications
| ETIM 6.0 | EC000237 |
|---|---|
| eClass 9.0 | 27-24-22-20 |
| eClass 10.0 | 27-24-22-20 |
| ETIM 7.0 | EC000237 |
|---|---|
| eClass 9.1 | 27-24-22-20 |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -10...50 °C |
| Operating temperature, min. | -10 °C |
|---|---|
| Storage temperature, min. | -10 °C |
| Storage temperature | -10...60 °C |
