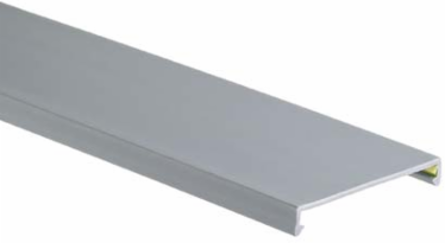

Panduit C2LG6 Panduct® C2LG6 Flush Duct Cover
Panduit C2LG6 Panduct® C2LG6 Flush Duct Cover
- MPN: C2LG6
- UPC: 074983230808
- PPN: PAN-C2LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.41/ FT
Description
The C2LG6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 2.25" (8.9 mm x 57.2 mm) and 6' (1.83 m) long. Color Light Gray.
Specifications
Packaging Details
- UPC
- 07498323080
- Standard Package Volume Ft3
- 0.0271
- Std Package Height In
- .1
- Std Package Length In
- 72
- Std Package Width In
- 2
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 0.5422
- Std Carton Height In
- 2.8
- Std Carton Length In
- 72.7
- Std Carton Width In
- 4.7
- Std Ctn Qty
- 120
- EAN
- 00074983230808
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 120.0000
- Pallet Volume
- 30.361881
- RoHS Compliant
- Compliant
GTIN Package00074983230808
Standard Package Weight Pounds0.5450
Std Package Height MM2.54
Std Package Length MM1828.8
Std Package Width MM50.8
UOM EA PKPK
GTIN Carton50074983230803
Standard Carton Weight Pounds10.9008
Std Carton Height MM71.12
Std Carton Length MM1846.58
Std Carton Width MM119.38
Min. Order UOMFoot
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity6,720
Pallet Weight610.4448
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Overall Height (mm)
- 8.9
- Color
- Light Gray
- Overall Width (mm)
- 57.2
- Application
- Cover for Wiring Duct
- Note
- Base and Cover Sold Separately.
- For Use With
- Type G, Type F, Type D and Type FS Duct Base; PanelMax Corner Wiring Duct
- Overall Height (In.)
- 0.35
- Compatible Duct Width (In.)
- 2
- Material Properties
- Lead-Free
Any Reason Not to SellN
Overall Width (In.)2.25
Product TypeFlushed Duct Cover
Mount MethodSnap-On
Overall Length (ft.)6
Sub BrandPanduct®
MaterialPVC
Wiring Duct StyleFlush Cover
Compatible Duct Width (mm)50.8
Overall Length (m)1.83
