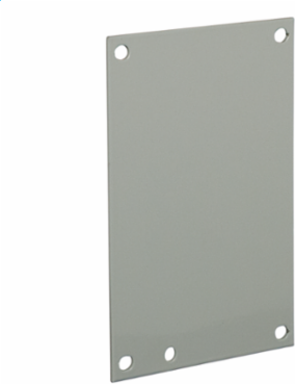

Wiegmann N1P2420 Panel Large N1C/RHC 17X22.5 Carbon Steel - White
- MPN: N1P2420
- UPC: 786725340842
- PPN: HBL-N1P2420
- UNSPSC: 39121302
CAD
$98.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Panel Large N1C/RHC 17X22.5 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- 14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Medium (NIC). Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- Used for mounting lightweight control components.
- Finish
- Smooth Hybrid Paint
- Mounting
- Mounting Holes
- Special Features
- 14 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Medium (NIC). Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
- Width
- 23 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- Mounting Holes
- Class Code
- P05
- Freight Class Code
- 00174410
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P078
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 40.000 in
- Pallet Width
- 48.000 in
Actual Width22.5 in
ColorWhite
Height17 in
ShapeRectangle
TypeBack Panel
Weight9 lb.
Finish TypeSmooth Hybrid Paint
ARRA CompliantContact Manufacturer
Description - InvoicePANEL,NEMA 1,17"X22-1/2"
Harmonization Code7326908688
Lead Time14 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionNon-Flanged
SeriesN1P Series
BOX SIZE0.550x23.300x17.700 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725340842
Pallet Height15.500 in
Pallet Weight723.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorNo
