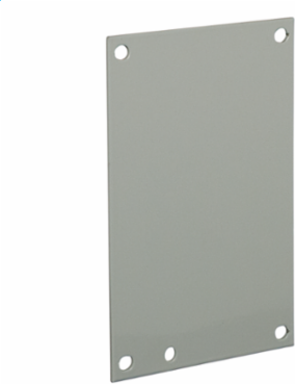

Wiegmann N1P2430 Panel Large N1C/RHC 26X22.5 Carbon Steel - White
- MPN: N1P2430
- UPC: 786725340859
- PPN: HBL-N1P2430
- UNSPSC: 39121302
CAD
$241.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Panel Large N1C/RHC 26X22.5 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- 12 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Medium (NIC). Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Width
- 22.5 in
- Color
- White
- Height
- 26 in
- Shape
- Rectangle
- Type
- Back Panel
- Weight
- 18 lb.
- Finish Type
- Smooth Hybrid Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- PANEL,NEMA 1,22-1/2"X26"
- Harmonization Code
- 7326908688
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Construction
- Flanged
- Series
- N1P Series
- BOX SIZE
- 1.000x29.600x29.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725340859
- Pallet Height
- 24.500 in
- Pallet Weight
- 425.000 lb.
- NAICS Code
- 3359326101
Actual Height26 in
ApplicationUsed for mounting lightweight control components.
FinishSmooth Hybrid Paint
MountingMounting Holes
Special Features12 gauge (non-perforated). White smooth hybrid finish. Panels fit the following enclosures: NEMA 1 Medium (NIC). Accept self-tapping screws - eliminates the need to measure, mark and drill when mounting components. Panels are used for mounting lightweight control components.
Width23 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeMounting Holes
Class CodeP05
Freight Class Code00174410
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P078
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length40.000 in
Pallet Width48.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorNo
