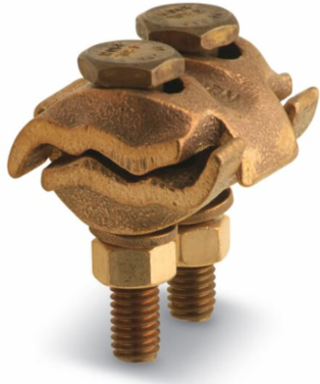

Blackburn PC250 Parallel Groove Clamp - 2-Bolt for 4 Solid/250 Stranded, 35 kV Voltage Rating, Copper
Blackburn PC250 Parallel Groove Clamp - 2-Bolt for 4 Solid/250 Stranded, 35 kV Voltage Rating, Copper
- MPN: PC250
- UPC: 783786849710
- PPN: T-B-PC250
- UNSPSC: 39121408
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$154.57/ EA
Description
Copper Type PC - Two Bolt Parallel Grove Clamp for Wire Range Main: 4 Solid - 250 Stranded, Tap: 4 Solid - 250 Stranded. Hex-Head 3/8 inch Bolts. Overall Bolt Length 2-5/16 inches. Body 2 inches X 1-3/4 inches.
Specifications
Additional Information
- Application
- Overhead Connector
- Connection Type
- Mechanical
- Insulation Material
- Bare
- Number of Conductors
- 2
- Product Name
- BKB-OVERHEAD SPLICE & TAP CONN
- Special Functions
- Made of high-strength copper alloy. Hex head bolts with square shank of silicon bronze. Spring washers are also of silicon bronze. Square shank bolts prevent turning while tightening. Contour of casting permits use of socket wrench if desired. Large contact area increases conductance. Not recommended for use with aluminum conductor.
Brand / LabelBlackburn
Effective Date19991027
MaterialCopper
Outside Diameter3/8 in
Product TypeParallel Groove Clamp
Voltage Rating35 kV
Ordering
- Country of Origin
- India (IN)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4541 >> Mechanical connectors
