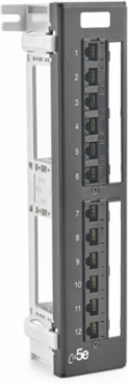

Hubbell Premise Wiring HP5E12 Cat 5e Patch Panel 12-Port Surface Mount, Black
- MPN: HP5E12
- UPC: 662620247069
- PPN: HBL-HP5E12
- UNSPSC: 43223309
CAD
$245.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Patch Panel Cat 5e, 12-Port, UniversalWiring
Features
- 7 dB min NEXT Margin 1 -100 MHz over TIA and ISO Channel Specifications
- Qualified to 150% of 802.3bt PoE Current Level
- Continuous Third Party Verification Program
Specifications
Additional
| Number of Ports | 12 |
|---|---|
| Designed Current Per Pair | 1.5 A |
| PoE Current Level | 150% of 802.3bt |
| Panel Material | 14 ga. Steel rolled-edge |
| Rear IDC Contact Material | Phosphor bronze with 100 micro-inch lead-free tin plating over nickel |
| Color | Black |
| EU RoHS Indicator | Contact Manufacturer |
| Mounting Type | Surface Mount |
|---|---|
| NEXT Margin | 7 dB min, 1-100 MHz |
| Standard | IEEE 802.3b 1000GBASE-T, 802.3bt PoE+, 802.3bt 4PPoE |
| Nose Contact Material | Beryllium copper with precious metal plating and nickel under-plating |
| Mating Cycle | 2000+ with FCC 8-position plug |
| Country of Origin | MX |
| Compliance | TIA-568-C.2, ISO/IEC 11801, UL Listed 1863, UL 94 V-0, ISO9001-2008 |
