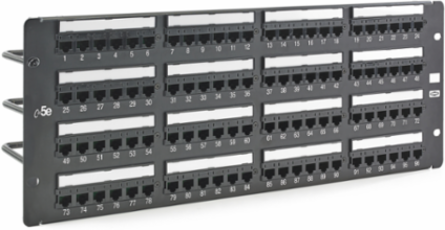

Hubbell Premise Wiring HP5E96 96-Port Cat 5e Patch Panel, 8.8 Inch Width, Flat Style
- MPN: HP5E96
- UPC: 662620247113
- PPN: HBL-HP5E96
- UNSPSC: 43223309
CAD
$1856.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Patch Panel Cat 5e, 96-Port, UniversalWiring
Features
- 7 dB min NEXT Margin 1 -100 MHz over TIA and ISO Channel Specifications
- Qualified to 150% of 802.3bt PoE Current Level
- Continuous Third Party Verification Program
Specifications
Additional
| Port Count | 96 |
|---|---|
| Mating Cycles | 2000+ |
| PoE Current Level | 150% of 802.3bt |
| Panel Height | 7 in. |
| Nose Contact Material | Beryllium Copper with precious metal and nickel plating |
| Panel Material | 14 ga. Steel |
| Country of Origin | US |
| Continuous Current per Pair | 1.5 A |
|---|---|
| NEXT Margin | 7 dB min 1-100 MHz |
| Panel Width | 19 in. |
| Mounting Type | Per CEA-310-E |
| Rear IDC Contact Material | Phosphor Bronze with 100 micro-inch lead free tin plating over nickel |
| Color | Black |
