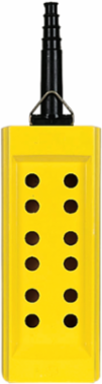

Schneider Electric XACB125 Harmony XAC Pendant Control Station, Yellow, Empty Enclosure, 12 Cut-Outs
- MPN: XACB125
- PPN: SCH-XACB125
CAD
$359.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XACB125 is an empty pendant control station with 12 openings in 2 columns. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Control Station Color
- yellow
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Circuit Type
- control circuit, power circuit
- Local Publishable Date
- 2026-03-31
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Type
- double insulated
- Enclosure Material
- glass reinforced polyester
- Guard Rail
- without
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Control Station Color
- yellow
- Certificate Agency
- CSA type 4
- Vertical Operator Cut-out Centre
- 40 mm
- Package Weight(Lbs)
- 1.810 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entryrubber sleeve with stepped entry 22-35 mm
Device Short NameXACB
Enclosure Typeempty enclosure
Mechanical Durability1000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0709005EN
Number Of Cut-out12 cut-outs in 2 rows
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP0709005EN
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000233
ETIM 9EC000233
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
