APC AR8635 Vertical Cable Manager 84 Inch x 10 Inch Single-Sided with Door, 65.04 lb Weight
- MPN: AR8635
- UPC: 731304291589
- PPN: APC-AR8635
CAD
$1731.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

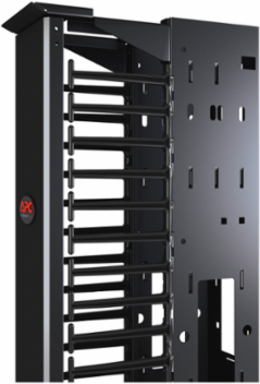

Vertical Cable Manager 84 Inch x 10 Inch Single-Sided with Door, 65.04 lb Weight
Features
- Smooth plastic fingers provide proper bend radius. — Smooth plastic fingers provide proper bend radius.
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. — Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Toollessly mount vertical Rack PDUs — Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
- Cable management tie-off backplate — Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444).
- Slam-to-latch full length door — Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Vertical cable managers ship fully assembled — Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
- Grounding connection — Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
- Similar look-and-feel to NetShelterT enclosures — Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Horizontal cable routing front-to-back — Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Documentation & Downloads
Specifications
Additional
- Height
- 84.02 in (213.4 cm)
- Depth
- 14.17 in (36 cm)
- Approvals
- UL Listed
- Reach
- Free of SVHC
- Toxic Heavy Metal Free
- Yes
- Customs Number
- 8302423065
- Warranty
- 24 months
- Mounting Mode
- Not rack-mountable
Width9.96 in (25.3 cm)
Weight65.04 lb (29.5 kg)
RoHSCompliant
Mercury FreeYes
WEEEMust follow EU waste collection
Product OrientationNo preference
ColorBlack
