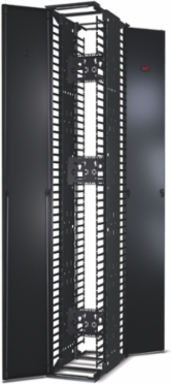

APC AR8675 Vertical Cable Manager 84 Inch x 12 Inch Double-Sided with Doors, 80 lb Weight
APC AR8675 Vertical Cable Manager 84 Inch x 12 Inch Double-Sided with Doors, 80 lb Weight
- MPN: AR8675
- UPC: 731304291619
- PPN: APC-AR8675
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2350.75/ EA
Features

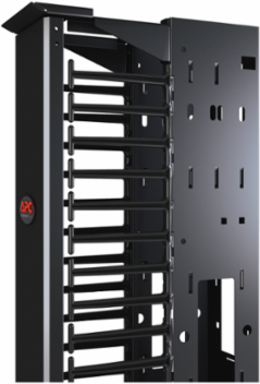

- Smooth plastic fingers provide proper bend radius. — Smooth plastic fingers provide proper bend radius.
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. — Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Toollessly mount vertical Rack PDUs — Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
- Slam-to-latch full length door — Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Mid-span bracket for 19" rackmount accessories and cable management — Double-sided vertical cable managers include three midspan brackets pre-installed that provide structural rigidity, 19" rackmount accessory mounting locations, and cable management tie-off using hook-and-loop cable managers (AR8621) or fiber spools (AR8444). Remove and re-arrange midspan brackets to divide the interior space of the cable manager and provide a deeper/shallower channel in 40-60, 50-50, or 60-40 splits.
- Vertical cable managers ship fully assembled — Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
- Grounding connection — Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.

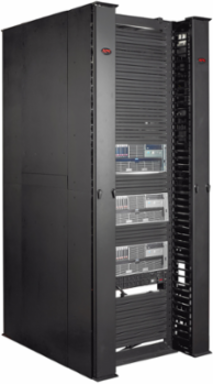

- Similar look-and-feel to NetShelterT enclosures — Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Horizontal cable routing front-to-back — Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Specifications
Conformance
- Approvals
- UL Listed
Sustainability
- Rohs
- Compliant
- TakeBack
- No
ReachReference contains Substances of Very High Concern above the threshold
WEEEThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Weight, Height, Width, Depth
- Weight
- 80.03 lb(US) (36.3 kg)
- Width
- 11.97 in (304 mm) in
Height84.02 in (2134 mm) in
Depth25.98 in (660 mm) in
Logistical informations
- Customs number
- 8302423065
Physical
- ProductOrientation
- no preference
Warranty
- Warranty
- Core product: 24 month(s)
