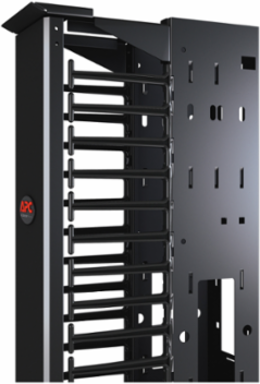

APC AR8625 Vertical Cable Manager for 2 & 4 Post Racks, 84 Inch x 6 Inch, Double-Sided with Doors

Description

Features

• Smooth plastic fingers provide proper bend radius.
• Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
• Toollessly mount vertical Rack PDUs — Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
• Slam — to-latch full length door-Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
• Mid — span bracket for 19" rackmount accessories and cable management-Double-sided vertical cable managers include three midspan brackets pre-installed that provide structural rigidity, 19" rackmount accessory mounting locations, and cable management tie-off using hook-and-loop cable managers (AR8621) or fiber spools (AR8444). Remove and re-arrange midspan brackets to divide the interior space of the cable manager and provide a deeper/shallower channel in 40-60, 50-50, or 60-40 splits.
• Vertical cable managers ship fully assembled — Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
• Grounding connection — Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
• Similar look — and-feel to NetShelterT enclosures-Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
• Horizontal cable routing front — to-back-Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
• Offers high-capacity vertical cable management with a double-sided channel
• Features multiple internal cable tie-off locations for organized patching
• Includes smooth plastic fingers at 1U increments for efficient cable management
• Comes with doors, mounting hardware, and midspan brackets
