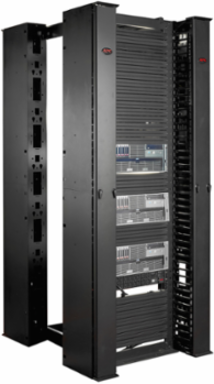

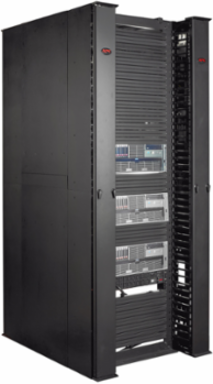

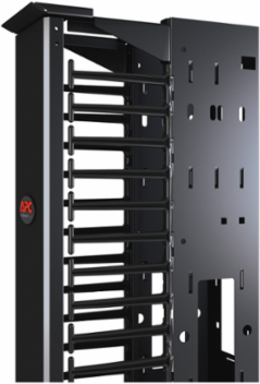

APC AR8615 Vertical Cable Manager 84 Inch x 6 Inch for 2 & 4 Post Racks, UL Listed, 60 lb Capacity
APC AR8615 Vertical Cable Manager 84 Inch x 6 Inch for 2 & 4 Post Racks, UL Listed, 60 lb Capacity
- MPN: AR8615
- UPC: 731304291565
- PPN: APC-AR8615
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1450.75/ EA
Features
- Smooth plastic fingers provide proper bend radius. — Smooth plastic fingers provide proper bend radius.
- Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. — Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Toollessly mount vertical Rack PDUs — Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
- Cable management tie-off backplate — Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444).
- Slam-to-latch full length door — Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Vertical cable managers ship fully assembled — Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
- Grounding connection — Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
- Similar look-and-feel to NetShelterT enclosures — Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Horizontal cable routing front-to-back — Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Specifications
Conformance
- Approvals
- UL Listed
Sustainability
- Rohs
- Compliant
- TakeBack
- No
- ReachFreeOfSVHC
- Yes
- WEEE
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
ReachFree of Substances of Very High Concern above the threshold
MercuryFreeYes
ToxicHeavyMetalFreeYes
Weight, Height, Width, Depth
- Weight
- 59.97 lb(US) (27.2 kg)
- Width
- 5.98 in (152 mm) in
Height84.02 in (2134 mm) in
Depth14.17 in (360 mm) in
Logistical informations
- Customs number
- 8302423065
Physical
- ProductOrientation
- no preference
Warranty
- Warranty
- Core product: 24 month(s)
Downloads
