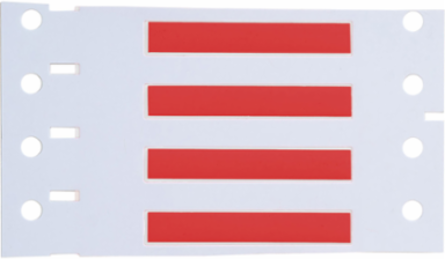

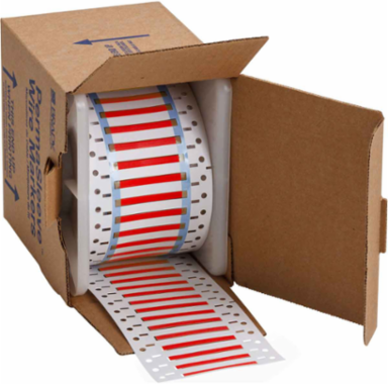

Brady PS-125-150-RD-S PermaSleeve Polyolefin Wire Marking Sleeves, 0.125" Dia x 1.5" W, Red, Roll of 500
- MPN: PS-125-150-RD-S
- UPC: 662820993964
- PPN: BRD-PS-125-150-RD-S
- UNSPSC: 55121612
CAD
$518.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Red
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 1
- Shrink Ratio
- 3:1
- Total Quantity
- 500
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.125 in
- Dimensions
- 0.235 in H
- Dimensions 2
- 0.235 in H
- Height (mm/cm/m)
- 6 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 2.8 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.046 in
- Minimum Wire Gauge
- 22 AWG
- Recovered Diameter (mm/cm/m)
- 1.2 mm
- Roll Width (mm/cm/m)
- 38.1 mm
- Sleeve Size (mm/cm/m)
- 3.2 mm Dia x 38.1 mm W
- Sleeve Width (mm/cm/m)
- 38.1 mm
- Wire Diameter Range
- 0.046 in to 0.11 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Quantity per Roll500
Recommended RibbonIP-R6606; IP-R6700-WT; R6606; R6700-WT
Suggested Ribbon SeriesR4300; R4502S; R5000; R6600; R6700
Trade NamePermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)3.2 mm
Dimensions (Metric)6 mm H
Height (in/ft/yd)0.235 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.11 in
Maximum Wire Gauge16 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.2 mm
Recovered Diameter (in/ft/yd)0.046 in
Roll Width (in/ft/yd)1.5 in
Sleeve Size (in/ft/yd)0.125 in Dia x 1.5 in W
Sleeve Width (in/ft/yd)1.5 in
Vertical Repeat0.5 in
Wire Gauge Range22 AWG to 16 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
