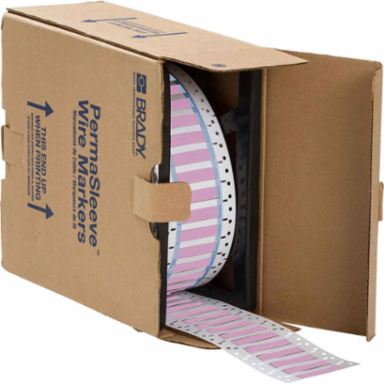

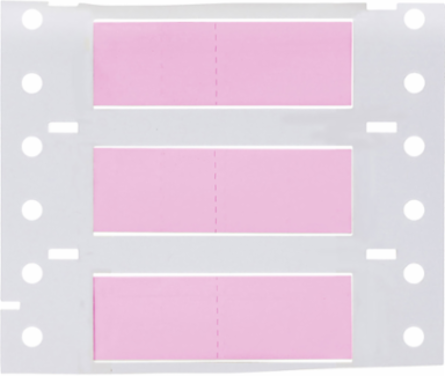

Brady PS-375-2-PK-S-2 PermaSleeve Polyolefin Wire Marking Sleeves, 0.375" Dia x 1" W, Pink, Roll of 500
Brady PS-375-2-PK-S-2 PermaSleeve Polyolefin Wire Marking Sleeves, 0.375" Dia x 1" W, Pink, Roll of 500
- MPN: PS-375-2-PK-S-2
- UPC: 662820991717
- PPN: BRD-PS-375-2-PK-S-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$615.89/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Pink
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 2
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 9.5 mm
- Dimensions (Metric)
- 16.4 mm H
- Height (in/ft/yd)
- 0.645 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 4 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.2 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Roll Width (in/ft/yd)
- 2 in
- Sleeve Size (in/ft/yd)
- 0.375 in Dia x 1 in W
- Sleeve Width (in/ft/yd)
- 1 in
- Vertical Repeat
- 1 in
- Wire Gauge Range
- 12 AWG to 4 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Quantity per Roll500
Recommended RibbonIP-R6600; R6600
Sleeve SlitsYes
Total Quantity500
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.375 in
Dimensions0.645 in H
Dimensions 20.645 in H
Height (mm/cm/m)16.4 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)8.1 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Minimum Wire Gauge12 AWG
Recovered Diameter (mm/cm/m)3.2 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (mm/cm/m)9.5 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)25.4 mm
Wire Diameter Range0.125 in to 0.32 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
