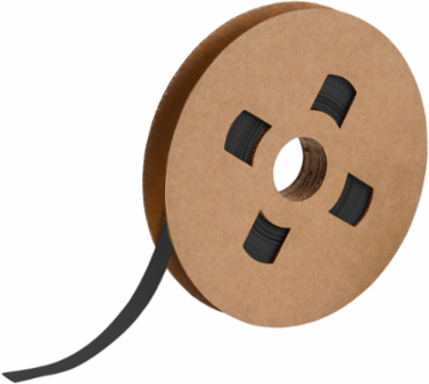

Brady PS-C-750-BK PermaSleeve Polyolefin Wire Marking Sleeves, 0.75" Dia x 50' L, Black
Brady PS-C-750-BK PermaSleeve Polyolefin Wire Marking Sleeves, 0.75" Dia x 50' L, Black
- MPN: PS-C-750-BK
- UPC: 754473897758
- PPN: BRD-PS-C-750-BK
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$372.97/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Shrink Ratio
- 3:1
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 19.1 mm
- Dimensions (Metric)
- 31.8 mm H
- Height (in/ft/yd)
- 1.25 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.7 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.25 in
- Minimum Wire Gauge
- 6 AWG
- Recovered Diameter (mm/cm/m)
- 6.4 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.64 mm
- Roll Length (mm/cm/m)
- 15.24 m
- Sleeve Size (mm/cm/m)
- 19.1 mm Dia x 15.24 m L
Brand NameBrady®
Enables Industry ComplianceMethod 215; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202F; RoHS Compliant; UL 224
For Use with PrinterBBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Recommended RibbonIP-R6700-WT; R6700-WT
Suggested Ribbon SeriesR4502S; R6700
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.75 in
Dimensions1.25 in H
Dimensions 21.25 in H
Height (mm/cm/m)31.8 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)17.8 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)6.4 mm
Recovered Diameter (in/ft/yd)0.25 in
Recovered Wall Thickness (in/ft/yd)0.025 in
Roll Length (in/ft/yd)50 ft
Sleeve Size (in/ft/yd)0.75 in Dia x 50 ft L
Wire Diameter Range0.25 in to 0.7 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
