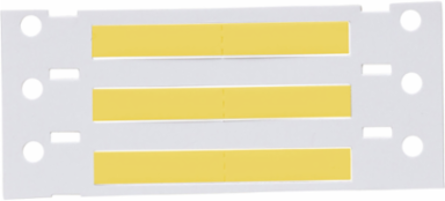

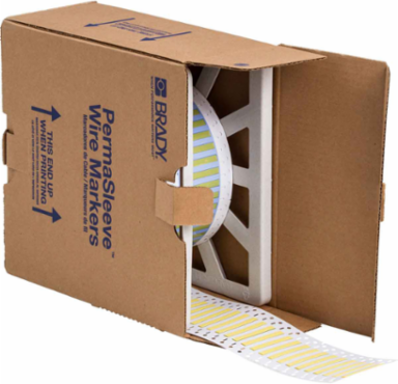

Brady PS-125-2-YL-2 PermaSleeve Polyolefin Wire Marking Sleeves, Yellow, 0.125" Dia x 1" W, Roll of 5000 Each

MPN: PS-125-2-YL-2
UPC: 662820023227
PPN: BRD-PS-125-2-YL-2
UNSPSC: 55121612

$2359.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Features

3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
Fade-resistant and smudge-proof for superior aesthetic appearance
Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized

Documentation & Downloads

Specifications

Key Specifications

Applications	Wire and Cable Labeling
Color	Yellow
Finish	Matte
Label/Media Format	Roll
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Quantity per Row	2
Shrink Ratio	3:1
Suggested Ribbon Series	R4300; R4502S; R5000; R6600; R6700
Trade Name	PermaSleeve®
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-342
Diameter as Supplied (mm/cm/m)	3.2 mm
Dimensions (Metric)	6 mm H
Height (in/ft/yd)	0.235 in
Maximum Service Temperature °C	135 °C
Maximum Wire Diameter (in/ft/yd)	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	1.2 mm
Recovered Diameter (in/ft/yd)	0.046 in
Roll Width (in/ft/yd)	2 in
Sleeve Size (in/ft/yd)	0.125 in Dia x 1 in W
Sleeve Width (in/ft/yd)	1 in
Vertical Repeat	0.5 in
Wire Gauge Range	22 AWG to 16 AWG

Brand Name	Brady®
Enables Industry Compliance	ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with Printer	BBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic Function	Sleeve
Printable Sides	Single-Side Printable
Quantity per Roll	5000
Recommended Ribbon	IP-R6600; R6600
Sleeve Slits	Yes
Total Quantity	5000
Brady Material Number	B-342
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)	0.125 in
Dimensions	0.235 in H
Dimensions 2	0.235 in H
Height (mm/cm/m)	6 mm
Maximum Service Temperature °F	275 °F
Maximum Wire Diameter (mm/cm/m)	2.8 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.046 in
Minimum Wire Gauge	22 AWG
Recovered Diameter (mm/cm/m)	1.2 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (mm/cm/m)	3.2 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)	25.4 mm
Wire Diameter Range	0.046 in to 0.11 in

Regulatory Information

CA Prop 65 Labeled	Yes
Contains CA PROP 65 Substance	Yes Contains-Label required
Contains CA PROP 65 Warning Type	Cancer
Contains Heavy Metal(s)	Unavailable
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required

CA Prop 65 Label Warning	WARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 Substance	Yes
Contains CA Prop 65 Cancer Causing Chemical	Antimony Trioxide
DOT Regulated Product	No = not regulated by DOT
EU RoHS Compliant	Yes
