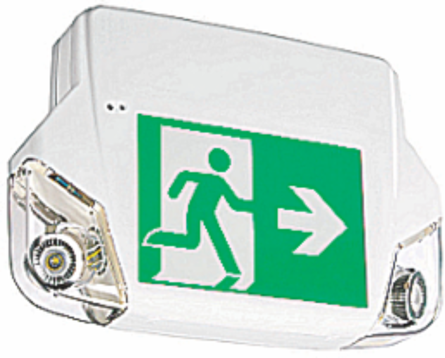

Thomas & Betts PREP1W3-L5A/2LG Pictogram Combination Unit, 12-3/8 Inch Height x 17 Inch Width, 2 MR16 LED Lamps, 30 Min Battery Run Time
- MPN: PREP1W3-L5A/2LG
- UPC: 782683488053
- PPN: T-B-PREP1W3-L5A/2LG
CAD
$643.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pictogram Combination Unit, single face ceiling or wall mount, Colour: factory white, Battery Type: lead-calcium, Battery Wattage: 50W, 120/347VAC, Voltage DC: 6V, diagnostics, non-audible, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 4W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Comes standard with non-audible auto-diagnostics
- Two MR16 LED or halogen lamps, shielded by a clear polycarbonate cover
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Commercial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Thermoplastic
- Color
- Factory white
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120/347VAC, 6VDC
BatteryLead-Calcium
Number Of Lamps2
Size12-3/8 Inches Height x 17 Inches Width
MountingCeiling
Lamp Wattage4W
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 11 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
