Thomas & Betts

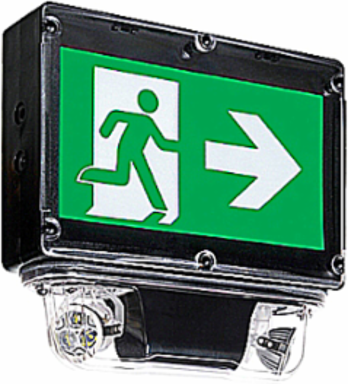

Thomas & Betts ENC1B6N36LANEXRF Pictogram Combination Unit, 12-5/8 Inch x 14 Inch, 36W, MR16 LED, Black

Pictogram Combination Unit, 12-5/8 Inch x 14 Inch, 36W, MR16 LED, Black
  • MPN: ENC1B6N36LANEXRF
  • UPC: 782683497246
  • PPN: T-B-ENC1B6N36LANEXRF

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1788.70/ EA

Description

Pictogram Combination Unit, Unit Type: NEMA-4X & NSF, single face, universal mount, Colour: black, Battery Type: nickel-cadmium, Battery Wattage: 36W, 120/347VAC, Voltage DC: 6V, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, self-powered, NEXUS wireless system interface, Head Style: shielded, Battery Run Time (Minimum): 30 minutes

Features

  • Certified NSF for use in food processing areas
  • Sealed, vandal-resistant faceplate of polycarbonate/split Legend illuminated by long-life white LED’s
  • Comes standard with two pictogram films per face, for direction selection
  • 4-Watt LED emergency lights provide 30 - 36 feet of egress illumination on a 6-foot wide path
  • Remote load capacity: covers with 4-Watt LED lights 100 feet up to 230 feet of egress illumination
  • Comes standard with auto-diagnostic

Specifications

North American Specifications (UNSPSC)

UNSPSC
39111707 Combo light unit exit
Brand Name
Emergi-Lite
Application
Institutional, Industrial, Commercial
Wattage
36W
Battery Runtime
30 minutes
Lamp Type
MR16 LED
Legend
On
Material
Polyvinyl / Aluminum
Color
Black
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120/347VAC, 6VDC
BatteryNickel-Cadmium
Number Of Lamps2
Size12-5/8 Inches Height x 14 Inches Width
MountingUniversal
Lamp Wattage4W

Packaging

Outer Quantity
1
Weight Uom
14 lbs. Each
Outer Dimensions (inches)1x1x1
