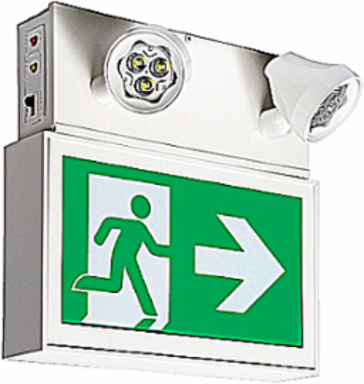

Lumacell LAC1B12802LD10AT Pictogram Combination Unit

MPN: LAC1B12802LD10AT
UPC: 624616328770
PPN: T-B-LAC1B12802LD10AT

$1550.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pictogram Combination Unit, single face, universal mount, Colour: black, auto-diagnostics, audible, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 80W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Head Style: standard, 120/347VAC, Battery Run Time: 30 minutes

Features

Legend illuminated by white LED’s warrantied for 10 years
Comes standard with two pictogram films per face, for direction selection
Twin LED lights provide up to 89 feet of egress illumination on a 6-foot wide path
Twin 4W LED emergency lights provide 34 - 40 feet of egress illumination on a 6-foot wide path
Remote load capacity: 70’ up to 350’ feet of egress illumination when using LED remote heads

Specifications

European Specifications (ETIM)

ETIM	EC001957 Emergency luminaire
Lamp power	6W
Colour housing	Black
Voltage type	AC/DC
Width	367mm

Lamp type	LED exchangeable
Material housing	Aluminium
Battery quality	Lead
Nominal voltage	120-347V
Height/depth	308mm

North American Specifications (UNSPSC)

UNSPSC	39111707 Combo light unit exit
Brand Name	Lumacell
Application	Institutional, Industrial, Hospitality
Wattage	80W
Battery Runtime	30 minutes
Lamp Type	MR16 LED
Legend	On
Material	Metal
Color	Black

IGCC	3938 Combo light unit exit
Type	Pictogram Combination Unit
Standard	CSA
Voltage Rating	120/347VAC, 12VDC
Battery	Lead-calcium
Number Of Lamps	2
Size	12-1/8 Inches Height x 14-1/2 Inches Width
Mounting	Universal
Lamp Wattage	6W
