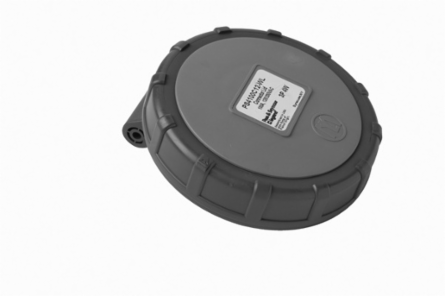

Pass & Seymour PS530C7WL Watertight 30A Replacement Receptacle Caps, 5-Wire 277/480V, 4.1 Inch Height
- MPN: PS530C7WL
- UPC: 785007011845
- PPN: P-S-PS530C7WL
CAD
$63.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Replacement Connector Lid, 5-Wire 30A 3-Phase 277/480V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.24 in
- Height
- 4.1 in
- Width
- 3.98 in
- Amperage
- 30.0 A
- Features
- Watertight
- Number of Wires
- 5.0
- Warranty Type
- 1-Year
- Type
- Replacement Covers
- Application Sector
- Industrial
Product LinePass & Seymour
FlangedNo
Country of OriginUnited States
StandardUL Listed
Indoor/OutdoorBoth
Voltage277/480 VAC
Number of Poles4-Way
Connector StylePin & Sleeve
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
