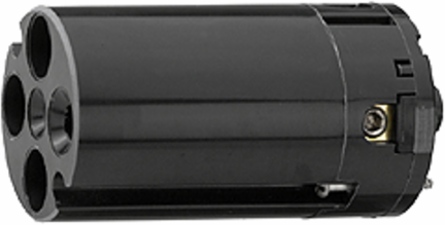

Hubbell Wiring Device-Kellems IN4100CFS Pin and Sleeve Replacement Interior, 4W 100A, 600V AC, IP67

MPN: IN4100CFS
UPC: 783585420936
PPN: HBL-IN4100CFS

$719.06

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pin and Sleeve Replacement Interior, 4W 100A, 600V AC, IP67

Specifications

Key Specifications

Flammability	UL94-5VA and V-0 classification.
Ingress Protection	IP67 Suitability
Dielectric Withstand Voltage	Withstands 3,000V AC
Contact Carrier	High-Impact Thermoset
Impact Resistance	In accordance with UL746C
Product Type	replacement-items
Operating Temperatures	Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact.
Short Circuit Withstand	Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Retainer	High-Impact Thermoset
For Use With	IEC Devices
Weight in LBs	2.65
Terminal Screws	Stainless Steel (300 series)
Product Identification	Identification and ratings are a part of the external label and molded into the receptacle mount.
Certifications	UL Listed, CSA Certified.

Max Working Voltage	600V AC RMS
Endurance	Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
Used In:	HBL4100R12W, HBL4100C12W
Gaskets	Neoprene
Current Interrupting	Certified for current interrupting at full rated current.
Interior Wiring Standard	3 Pole, 4 Wire
UV Resistance	All materials are UV Stabilized.
Terminal Identification	Terminals identified in accordance with North American and International conventions.
Hinge Spring	Stainless Steel (300 series)
Ground/Phase Sleeve	Brass
Pin/Sleeve Spring	Beryllium Copper multi-contact insert with silver plating.
Assembly Screws	Stainless Steel (300 series)
Certification	UL Listed, CSA Certified
Replacement Part	Interiors
