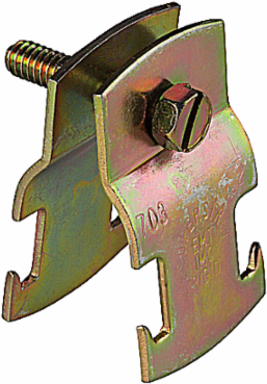

Superstrut 703 1 1/4 Pipe Straps, Pipe Clamps & Hangers (Series 700)
Superstrut 703 1 1/4 Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: 703 1 1/4
- UPC: 616013143681
- PPN: T-B-703 1 1/4
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.34/ EA
Description
Clamp, Universal, 14 Gauge, Size 1-1/4 Inch, Pipe Outer Diameter 1.508 Inches - 1.660 Inches, Steel, For use with Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
Features
- Square nut is captivated on the shoulder for easy one-handed tightening.
- Straps are interchangeable with 1-1/2 Inch strut, for broader application.
- Straps are shipped assembled so counting and sorting are easier.
- Pipe and conduit sizes are shown on the strap for easy identification.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 31162906 Hose or pipe clamps
- Brand Name
- Superstrut
- Special Features
- Bolt head is combination slot and hex head for flexibility of attachment
- Material
- Steel
- Maximum Clamp Diameter
- 1.660 Inches
IGCC3064 Hose or pipe clamps
TypePipe Straps, Pipe Clamps & Hangers (Series 700)
ApplicationSuperstrut Pipe Straps are designed to be twist inserted anywhere along the slot side of the channel.
FinishGoldGalv/Standard
Minimum Clamp Diameter1.508 Inches
European Specifications (ETIM)
- ETIM
- EC002470 Mounting clamp for cable protection tubes
- Rotatable
- N
MaterialSteel
Packaging
- Outer Quantity
- 50
- Weight Uom
- 12.5 lbs. per 100
Outer Dimensions (inches)10.25x7.25x4.5
