Superstrut 703 1/2 EG Pipe Straps, Pipe Clamps & Hangers (Series 700)
Superstrut 703 1/2 EG Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: 703 1/2 EG
- PPN: T-B-703 1/2 EG
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.36/ EA
Description

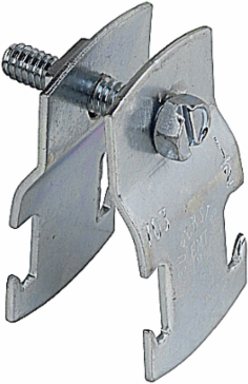

Clamp, Universal, 16 Gauge, Size 1/2 Inch, Pipe Outer Diameter .706 Inches - .840 Inches, Electro-Galvanized Steel, For use with Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
Features
- Square nut is captivated on the shoulder for easy one-handed tightening.
- Straps are interchangeable with 1-1/2 Inch strut, for broader application.
- Straps are shipped assembled so counting and sorting are easier.
- Pipe and conduit sizes are shown on the strap for easy identification.
Specifications
Packaging
- Outer Quantity
- 100
- Weight Uom
- 11.63 lbs. per 100
Outer Dimensions (inches)9.25x5.5x5
North American Specifications (UNSPSC)
- UNSPSC
- 31162906 Hose or pipe clamps
- Brand Name
- Superstrut
- Special Features
- Bolt head is combination slot and hex head for flexibility of attachment
- Material
- Steel
- Maximum Clamp Diameter
- 0.840 Inches
IGCC3064 Hose or pipe clamps
TypePipe Straps, Pipe Clamps & Hangers (Series 700)
ApplicationSuperstrut Pipe Straps are designed to be twist inserted anywhere along the slot side of the channel.
FinishSilverGalv/Electro-Galvanized
Minimum Clamp Diameter0.706 Inches
European Specifications (ETIM)
- ETIM
- EC002470 Mounting clamp for cable protection tubes
- Surface protection
- Galvanic/electrolytic zinc plated
MaterialSteel
RotatableN
