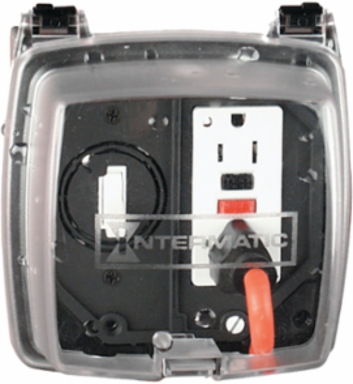

Intermatic WP1220C Plastic In-Use Weatherproof Cover Double-Gang Clear 2.25 Inch
- MPN: WP1220C
- UPC: 078275072695
- PPN: INT-WP1220C
- UNSPSC: 39121304
CAD
$18.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

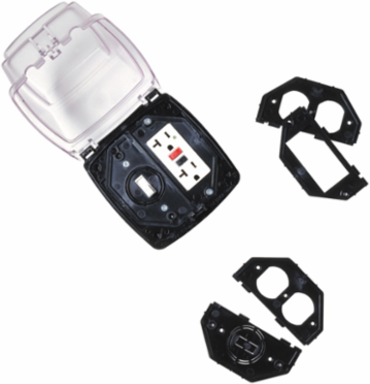

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
- Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
- Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
- Warranty: 1-year limited
Documentation & Downloads
Specifications
Additional
- Color
- Clear
- Width
- 5 in
- Warranty Period
- 1-Year limited
- Applications
- Receptacle Protection
- Cover Material
- UV Stabilized Polycarbonate
- Included Inserts
- 6
- Max Cord Size
- 2x14 AWG, 1x12 AWG
- Temperature Rating
- -60 F (-51 C)
Height5.5 in
Depth2.25 in
Country of OriginMexico
Box TypeDouble-Gang
Hinge DirectionVertical
Insert TypeWP217
ComplianceUL Certified Type 3R, Complies with 2020 NEC Article 314.15
