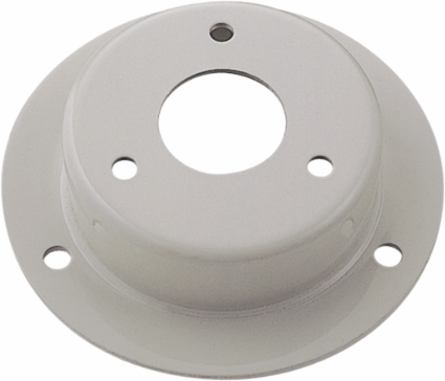

Schneider Electric XVCZ12 Metal Fixing Plate for 84 mm Tube Mounting, 0.1 kg Weight

  • MPN: XVCZ12
  • PPN: SCH-XVCZ12
  • UNSPSC: 32151503
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $75.15

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The XVCZ12 Metal Fixing Plate from Schneider Electric is specifically designed for robust and secure mounting of 84 mm tubes, making it an essential accessory for any automation and control setup. Weighing only 0.1 kg, this plate ensures easy installation without compromising stability. Its durable metal construction adds reliability, allowing it to effectively support signal towers and pilot devices in industrial applications. A practical choice for engineers and technicians, this fixing plate optimizes the setup and maintenance of automation systems, ensuring seamless operation in various environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia
    Weight110 g

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Carbon Footprint Of The Distribution Phase A40.014383988, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.1137690492, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Weee ScopeOut
    Eoli Availability DisplayYes
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1907
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Diameter84 mm
    Product Specific Applicationbase mounting
    ReturnabilityYes
    Sustainable PackagingYes
    Database Version2022-01
    Height Nominal21.6 mm
    Accessory / Separate Part Destinationcomplete pre-wired monolithic tower light
    Accessory / Separate Part Designationmetal fixing plate
    Customs Code3926909989
    Functional Unit DescriptionThe Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features, high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and product is adhering to EN standards.
    Functional Unit UnitUnit
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0960549474
    Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.695621378
    Local Data StatusPublishable
    Return IndicatorY
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1904008EN
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductHarmony XVC6
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
    Data Sourceextrapolated product
    Accessory / Separate Part Categorymounting and fixing accessories
    Accessory / Separate Part Typefixing plate
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10

    Environment Attributes Main

    China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1904008EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Take BackNo
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.9198293625
    Environmental DisclosureENVPEP1904008EN
    Packaging Made With Recycled CardboardYes
    Pep CodeENVPEP1904008EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Range Of ProductHarmony XVC6

    ETIM

    ETIM 8EC001154
    ETIM 10EC001154
    ETIM 9EC001154

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

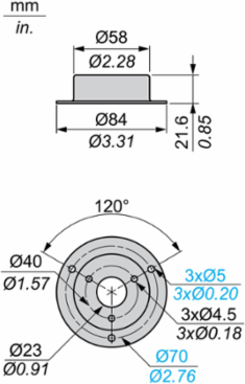

    Metal Fixing Plate for 84 mm Tube Mounting, 0.1 kg Weight
    Metal Fixing Plate for 84 mm Tube Mounting, 0.1 kg Weight
