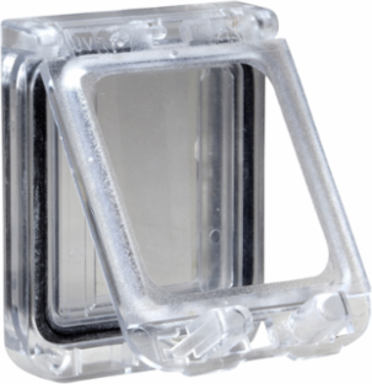

Schneider Electric NSYVA278MA Transparent Polycarbonate Window, 78mm x 165mm x 25mm, IP65
Schneider Electric NSYVA278MA Transparent Polycarbonate Window, 78mm x 165mm x 25mm, IP65
- MPN: NSYVA278MA
- PPN: SCH-NSYVA278MA
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$13.82/ EA
Description
Transparent polycarbonate multi-purpose window for modular equipment for installation on door or panel in PanelSeT PLA, PanelSeT PLM, PanelSeT S3D, PanelSeT CRN and PanelSeT PLS enclosures Opening width is 165mm, height is 78mm and depth is 25mm (8 modules) The kit is made up of 1 complete window For modular device accessory. Lock without key, possibility to seal it. 8 x 18 mm modules. Polycarbonate transparent made. Compatibility is PanelSeT CRN/S3D, PanelSeT PLA/PLS/ PLM.
Features
- Transparent polycarbonate window for visual access to internal components
- Ideal for industrial environments requiring frequent checks
- Provides protection while allowing monitoring without opening the enclosure
- It can be installed on the door or on the panel
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -, -, -
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Location
- installation on door or panel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Accessory Separate Part Destination2
- for modular device
- Stocking Flag
- Y
- Pep Code
- ENVPEP1001004EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Lock Typelock without key, possibility to seal it
Local Publishable Date2025-12-09
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Composition1 complete window
MaterialTransparent polycarbonate
Package Weight Lbs110.000 g
Product Or Component Typewindow
ReturnabilityNo
Accessory Separate Part Category2installation accessory
Medium DescPlastic window with hinged transparent cover, L78xW165xD25mm.
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1001004EN
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- window
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 25 mm
