Greenlee 651 12" Hook Type Cable Sheave
- MPN: 651
- UPC: 783310153252
- PPN: GRN-00651
- UNSPSC: 39121722
CAD
$159.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

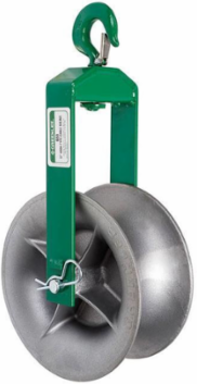

12" Hook Type Cable Sheave
Features
- Strong, welded steel frames
- Forged steel closure-type hooks with 1 IN (25.4 mm) openings
- 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Outside Diameter | 10.62" |
| Groove | R 2.0" |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15358 UPC 15358 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16800 UPC 16800 Yoke Frame |
| Type | Sheave Assembly |
| Keyway | None |
|---|---|
| Pitch Diameter | Between 6.62" and 10.62" |
| Material | 12" (304.8 mm) dia. Hook Sheave with 3-5/16" (84.1 mm) minimum radius |
| Standard | 12" HOOK TYPE CABLE SHEAVE |
| Capacity | 4000.000 LB (17.800 KN) |
