Thomas & Betts K650CP PLUG CONN 600A DB 15/25KV
- MPN: K650CP
- UPC: 783786640331
- PPN: T-B-K650CP
- UNSPSC: 26121630
CAD
$391.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

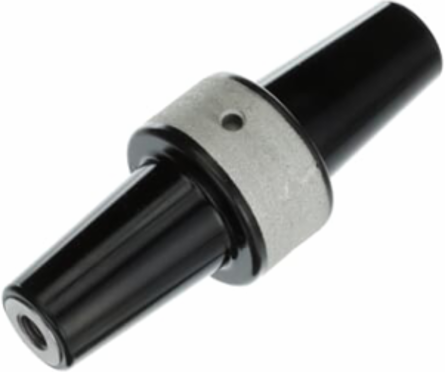

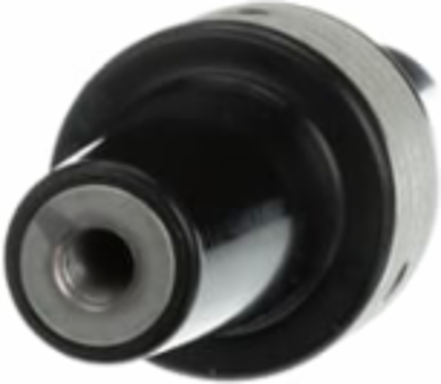

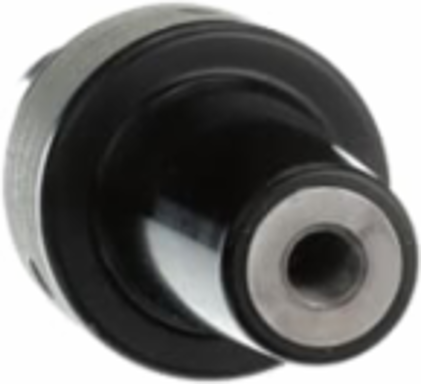

600 Amp, 15/25kV, Deadbreak, Connecting Plug. Widest Diameter 3 inches.
Specifications
Additional Information
- Application
- The Elastimold K650CP connecting plug is an insulated bus that is used to attach and connect two or more Elastimold K655LR/K656LR 600 Amp connectors. Units use a 600SW spanner wrench for installation.
- Effective Date
- 19980115
- Product Name
- ELECTRICAL PLUG>1000V
- Size
- 3.00 inch (76.2 mm) Diameter, 8.25 inch (209.6 mm) Length
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeConnecting Plug
Special Functions15/25kV 600 Deadbreak rated. Provisions for spanner wrench installation. Allows de-energized connection of two 600 Amp connectors. Available with or without stud.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
