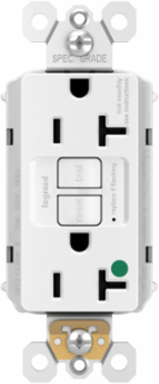

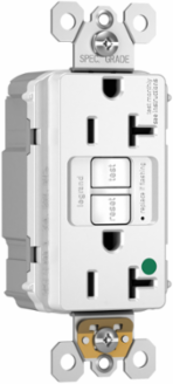

Pass & Seymour PT2097HGNAW PlugTail® Hospital-Grade 20A Self-Test Duplex GFCI, 1.72 Inch Wide, White
- MPN: PT2097HGNAW
- UPC: 785007050349
- PPN: P-S-PT2097HGNAW
CAD
$85.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The fastest-installing GFCI ever, now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.
Features
- Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
- It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
- High-impact-resistant thermoplastic construction with tri-drive terminal screws.
- Trip indicator light (red LED).
- Feed-through wiring configuration allows GFCI to protect downstream receptacles.
- Faster, more reliable installation.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.98 in
- Standard
- FSUL
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Features
- Self-Test
- Number of Wires
- 3.0
- Wall Plate Included
- Yes
- Outlet Type
- Hospital Grade
- Application Sector
- Commercial
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Warranty Type
- 1-Year Limited Warranty
- Color
- White
- Special Features
- Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
Width1.72 in
StandardcULus
Amperage20.0 A
Outlet TypeGFCI
StandardUL Listed
Indoor/OutdoorIndoor
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorHealthcare
NEMA Configuration Code5-20R
FeaturesNorth American Compliant
Environmental Conditions95% Humidity, UL 94 V2
Product LinePass & Seymour
