Weidmuller 1234580000 PM 5.08/06/90 3.5SN OR BX
- MPN: 1234580000
- PPN: WDM-1234580000
CAD
$1.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

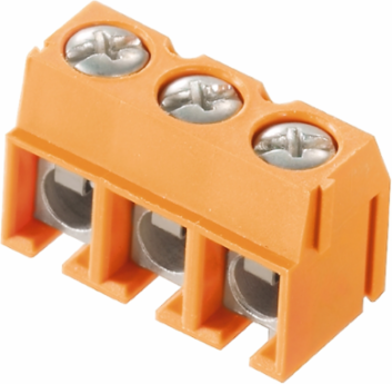

Printed circuit board terminals, 5.08 mm, Number of poles: 6, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Pressure clamp connection, Clamping range, max. : 2.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 15 A
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 14
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform

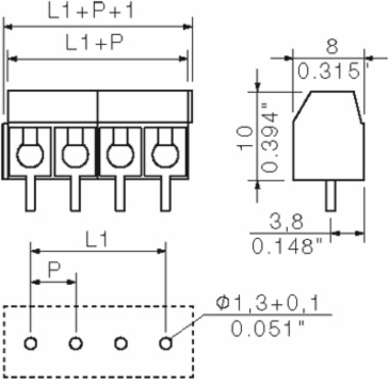

Dimensions And Weights
- Width
- 31.08 mm
- Height
- 13.5 mm
- Height of lowest version
- 10 mm
- Depth (inches)
- 0.315 inch
Width (inches)1.224 inch
Height (inches)0.531 inch
Depth8 mm
Net weight5 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

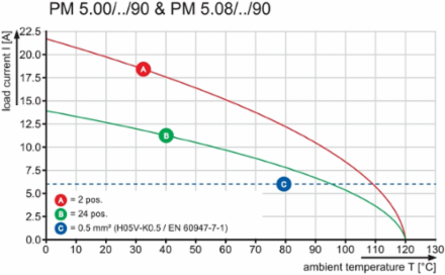

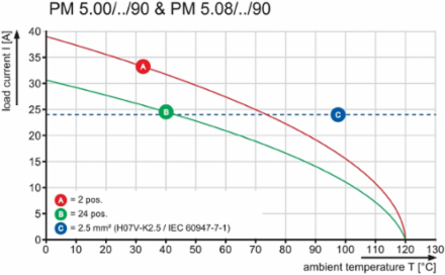

- Rated current, max. number of poles (Tu=20°C)
- 24 A
- Rated current, max. number of poles (Tu=40°C)
- 24 A
- Rated voltage for surge voltage class / pollution degree III/2
- 250 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)24 A
Rated current, min. number of poles (Tu=40°C)24 A
Rated voltage for surge voltage class / pollution degree II/2600 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- GWFI
- 960 °C
- Contact surface
- tinned
- Tinning type
- matt
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourorange
Insulating material groupI
Insulation strength≥ 108 Ω
GWIT960 °C
Contact materialCopper alloy
Coating1-3 μm Ni, 4-6 μm SN
Layer structure of solder connection1.5-3.5 µm Ni / 4-6 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Signal - series PM
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 5.08 mm
- Number of poles
- 6
- Number of rows
- 1
- Solder pin length (l)
- 3.5 mm
- Solder eyelet hole diameter (D)
- 1.3 mm
- Number of solder pins per pole
- 1
- Screwdriver blade standard
- DIN 5264
- Tightening torque, max.
- 0.5 Nm
- Stripping length
- 6 mm
- L1 in inches
- 1 inch
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
Wire connection methodPressure clamp connection
Conductor outlet direction90°
Pitch in inches (P)0.2 inch
Fitted by customerYes
Max. adjacent poles per row24
Solder pin dimensionsd = 1.0 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade0.6 x 3.5
Tightening torque, min.0.4 Nm
Clamping screwM 2.5
L1 in mm25.4 mm
Touch-safe protection acc. to DIN VDE 0470IP 20, above the PCB; with conductor connected
Insulation strength≥ 108 Ω
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Box
- VPE width
- 140 mm
VPE length45 mm
VPE height330 mm
Notes
- Notes
- Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 The data given under CSA relates to a cUL approval - E60693 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Solid, min. H05(07) V-U
- 0.13 mm²
- Flexible, min. H05(07) V-K
- 0.13 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Max. clamping range
- 2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 15 A
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1815154
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 14
