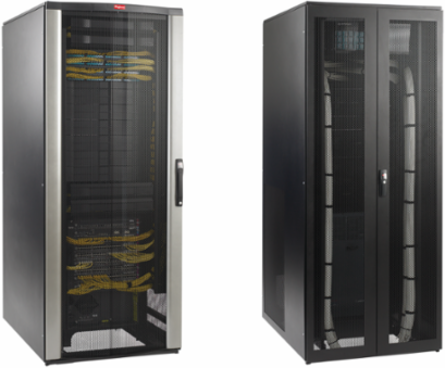

nVent Hoffman PNS20810B ProLine Network Switch Cabinet, 78.37 Inch Height, 39.34 Inch Depth, Steel, Black
nVent Hoffman PNS20810B ProLine Network Switch Cabinet, 78.37 Inch Height, 39.34 Inch Depth, Steel, Black
- MPN: PNS20810B
- UPC: 783510187811
- PPN: HOF-PNS20810B
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProLine Network Switch Cabinets are thermal cable management solution for large data network switches. This ProLine Network Switch Cabinet with Sides, PNS20810B item measures 2000x800x1000mm with a material of Steel colored Black.
Features
- Meets all CISCO 6509, 6513, 7009 and 7018 Series network switch installation and operational requirements
- Integrated right-to-left airflow ducting ensures core switch is supplied with air from cold aisle
- Front door has keyed multi-point vault-style latch system and central key lock to ensure security
- Split overlapping rear doors provide quick access to equipment without blocking aisles (7009 and 7018 Series have split front and rear doors)
- Front vertical cable manager has integral hinged doors to house, protect and provide aesthetic appearance
- Front cable manager uses arrowhead support fingers to support and ensure proper bend radius, provide increased cable capacity and facilitate assembly
- Available standard with sides or without for use in ganged applications
- Top-mount sliding gland plate provides large opening for cables, pre-terminated cable bundles and patch panels
- Open base allows under floor cable entry
- 6509 and 6513 Series only:
- Network core switch shelf located at bottom of cabinet (2 RU on 65089/6513 Series; 0 RU on 7018 Series)
- Attractive, rigid front door made of aluminum extrusions and formed perforated steel, with more than 70 percent open space for free flow of cool air to equipment
- Rear upper-mounted 4 RU equipment mounting angles provide for PDUs, fiber-to-copper transition, splitter equipment and other 19-in. rack-mounted equipment
- Rear horizontal and vertical cable management provide support and transition of permanent link cables
- Switch shelf is included with cabinet
- Front set of 19-inch mounting rails are tapped (10-32) per EIA standards
- Top and sides are formed steel
- Sides secured with fasteners
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 808
- Product Family
- ProLine
- Thickness (T)
- 1.52
- Sub Brand
- ProLine
- Width
- 31.8 in
- Material
- Steel
- Color
- Black
Height (H)1,991
Depth (D)999
Color CodeRAL 9005
Weight492
Height78.37 in
Depth39.34 in
FinishBlack
