Hubbell ATS-00449 ATS-00449 (former catalog number ATS-65W-POE-INJ)
- MPN: ATS-00449
- UPC: 662620433950
- PPN: HBL-ATS-00449
CAD
$308.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

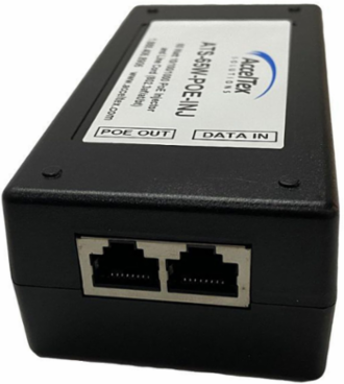

ATS-00449 (former catalog number ATS-65W-POE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with a U.S. AC line cord and has upstream port lightning protection.
Features
- PoE injector with upstream port lightning protection converts AC to PoE
- Includes built-in over-voltage, over-current, and short-circuit protection
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 1.57 in |
| Length | 4.8 in |
| Width | 2.36 in |
| Connector Type | (2) RJ-45 Jacks |
| Operating Temperature | 0 to 40 °C |
| Class Code | A62 |
| Harmonization Code | 8504408500 |
| Sub Class Code | A62A625 |
| Input | AC 100-240V 50/60HZ |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620433950 |
| Dimensions | 4.8 in x 2.36 in x 1.57 in |
|---|---|
| Humidity | 10% to 90% RH (non-condensing) |
| Storage Temperature Range | '-40 to 158° F (-40 to 70° C) |
| Application | Carpeted Space, Energy/Facility Management, High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium |
| Installation Type | Surface Mount |
| Output Voltage | 52 VDC |
| Freight Class Code | 01381000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor |
| Technology | 802.3af, 802.3at |
| BOX SIZE | (in) |
