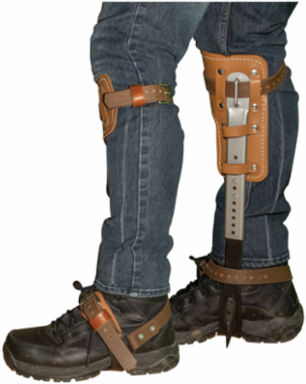

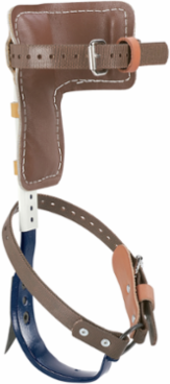

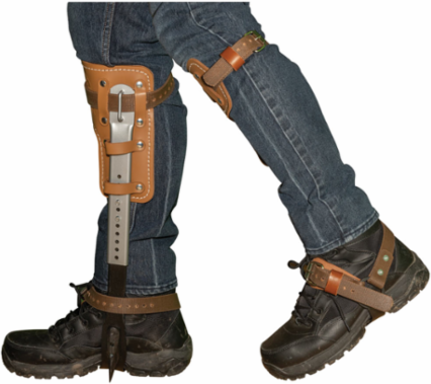

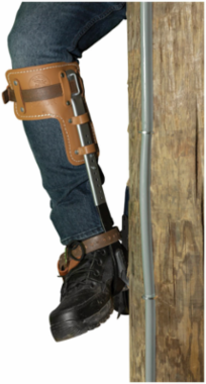

Klein Tools CN1972ARL Adjustable Pole Climber Set with 1-1/2 Inch Gaffs, 17 to 21 Inch Size
- MPN: CN1972ARL
- UPC: 092644520426
- PPN: KLT-CN1972ARL
- UNSPSC: 46182310
CAD
$710.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Klein's Pole Climber set includes the pads, steel sleeves, leg irons, 1-1/2-Inch gaffs, split rings and nylon calf and ankle straps. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (6 mm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.
Features
- 8-Inch (203 mm) x 8-Inch (203 mm) cushioned, high-grade leather climber pads for maximum comfort
- Neoprene-impregnated nylon climber straps for long-lasting life
- Secure sleeve and leg iron connection. Two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
- Steel split ring secures ankle strap in place and allows for quick replacement
- 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
- Contoured leg irons help position gaffs securely and comfortably
- C.C.A. pole gaff. Designed to penetrate the hardest salt-treated poles
- To determine size needed, measure from instep to 1-Inch (25 mm) below knee
- Sold in pairs only
Documentation & Downloads
Specifications
Additional
- Adjustable Length
- 17 in to 21 in (43.2 to 53.3 cm)
- Depth
- 17 in
- Height
- 3.42 in
- Leg Iron Adjustment Increment
- 1/4 in (6 mm)
- Climber Strap Material
- Neoprene-impregnated nylon
- Climber Pad Size
- 8 in x 8 in (203 mm x 203 mm)
- Country of Origin
- United States
- Replacement Ankle Strap Cat. No.
- 5301-20
Weight6.0 lb (2.7 kg)
Width8.82 in
Gaff Size1-1/2 in
Stirrup Width4-7/16 in (113 mm)
Climber Pad MaterialHigh-grade leather
Secure Connection HardwareTwo slotted hex-head bolts with lock washers and barrel-type nuts
Replacement Calf Strap Cat. No.5301-18
Replacement Pad Cat. No.8210
