Hubbell ATS-00155 ATS-00155 (former catalog number ATS-12106P-S-L-CG-UBPTB-INTOO-46-4NP)

MPN: ATS-00155
UPC: 662620431987
PPN: HBL-ATS-00155

$1526.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

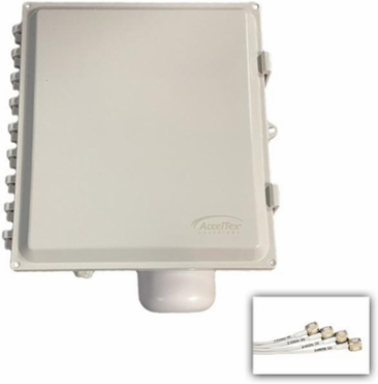

ATS-00155 (former catalog number ATS-12106P-S-L-CG-UBPTB-INTOO-46-4NP). The AccelTex Solutions polycarbonate enclosure protects any enterprise-class AP from environmental threats and tampering. Purpose built for enterprise applications, this aesthetically pleasing enclosure is inconspicuous in an indoor application and comes pre-installed with an AccelTex omni antenna on the bottom of the enclosure.

Features

Polycarbonate enclosure with pre-installed omni antenna protects enterprise-class APs
Provides environmental and tampering protection in indoor and outdoor applications

Specifications

Key Specifications

Country of Origin	United States
Color	Light Grey
Enclosure Style	Mounting Feet
Length	12 in
Ratings	122
Width	10 in
Compatibility	Cisco MR76;Cisco MR86
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Isolation Loss	˃20dB
Operating Temperature	-28 to 115 °C
Freight Class Code	03928002
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Technology	802.11ac, 802.11ax, 802.11n, 802.3af, 802.3at
BOX SIZE	(in)

Cable Type	RG58
Dimensions	12 in x 10 in x 6 in
Height	6 in
Protection Type	DC Grounded
Voltage Ratio	< 2.0:1
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	N-Style Plug
Impedance	50 Ohms
Lock Type	Latch
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A623
Material	Polycarbonate
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620431987
