Leviton PFGF1-BN Pop-Up Floor Box with 15 Amp Self-Test GFCI Outlet, Brushed Nickel, 125 Volt
- MPN: PFGF1-BN
- UPC: 078477938843
- PPN: LEV-PFGF1-BN
CAD
$153.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

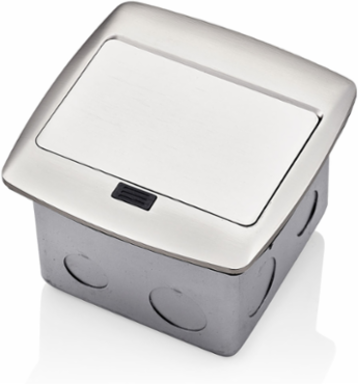

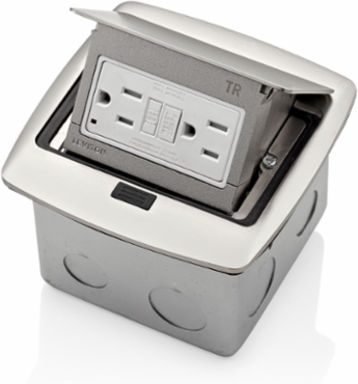

Pop-Up Floor Box with 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-Test SmartlockPro GFCI that is pre-wired to terminal block - Brushed Nickel
Features
- TIME SAVING INSTALLATION - Terminal block is pre-wired for easy access, just insert the wires and tighten the screws
- CONVENIENT – Low profile, stylish metal cover recesses into the floor when not in use reducing above floor height to ¼ inch. Press button to access
- PROTECTION – Meets or exceeds UL 514A including scrub water test. IP 44 rated protection from ingress water spray from any direction when closed
- VERSATILE – Can be used with a variety of flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Standards and Certification
- Applicable Standards
- Conforms to UL STD 514A, Certified to CSA STD 22.2 No. 18.1, IP 44, NOM ANCE*
Certification/ListingcETLus
Mechanical Specification
- Terminal Accom.
- 12-14 AWG
TerminationTerminal Block
Electrical Specification
- Amperage
- 15 A
- Pole
- 2
- Wire
- 3
NEMA5-15R
Voltage125 VAC
Product Features
- Color
- Brushed Nickel
- Warranty
- 2-Year Limited
TypeTamper-Resistant Self-Test GFCI
Material Specification
- Box Material
- Coated Steel
Mounting and Assembly ScrewsPlated Steel
