Leviton PFTR2-BR Pop-Up Floor Box, 20 Amp Tamper-Resistant Outlet, Brass, NEMA 5-20R
- MPN: PFTR2-BR
- UPC: 078477938867
- PPN: LEV-PFTR2-BR
CAD
$125.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

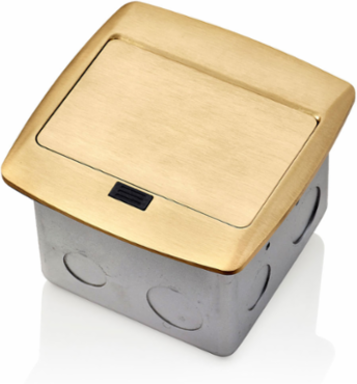

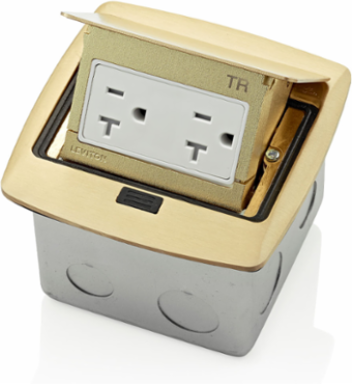

Pop-Up Floor Box with 20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet that is pre-wired to terminal block - Brass
Features
- TIME SAVING INSTALLATION - Terminal block is pre-wired for easy access, just insert the wires and tighten the screws
- CONVENIENT – Low profile, stylish metal cover recesses into the floor when not in use reducing above floor height to ¼ inch. Press button to access
- PROTECTION – Meets or exceeds UL 514A including scrub water test. IP 44 rated protection from ingress water spray from any direction when closed
- VERSATILE – Can be used with a variety of flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | True |
|---|
Standards and Certification
| Applicable Standards | Conforms to UL STD 514A, Certified to CSA STD 22.2 No. 18.1, IP 44, NOM ANCE* |
|---|
| Certification/Listing | cETLus |
|---|
Mechanical Specification
| Terminal Accom. | 12-14 AWG |
|---|
| Termination | Terminal Block |
|---|
Electrical Specification
| Amperage | 20 A |
|---|---|
| Pole | 2 |
| Wire | 3 |
| NEMA | 5-20R |
|---|---|
| Voltage | 125 VAC |
Product Features
| Color | Brass |
|---|---|
| Warranty | 2-Year Limited |
| Type | Tamper-Resistant Outlet |
|---|
Material Specification
| Box Material | Coated Steel |
|---|
| Mounting and Assembly Screws | Plated Steel |
|---|
