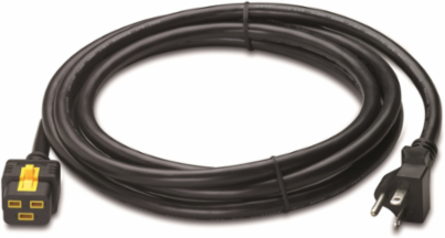

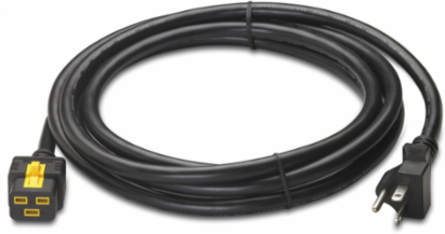

APC AP8751 Locking Power Cord, IEC C19 to NEMA 5-20P, 3.00m Length, 120V, 1.57 lb

MPN: AP8751
UPC: 731304279747
PPN: APC-AP8751

$80.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AP8751 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), NEMA 5-20P as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Features

Locking IEC receptacle to reduce risk of accidental disconnections
Universal fit in any IEC receptacles
Output jumpers in multiple lengths and configurations
Exclusive locking feature for APC AP8000 range of Rack PDUs
Multi region approved with regional input sockets

Documentation & Downloads

Specifications

Additional

Voltage	120 V
Input Connection Type	NEMA 5-20P
Height	9.06 in (23 cm)
Depth	1.77 in (4.5 cm)
Output Socket	IEC 60320 C19
Storage Temperature Range	-13 to 221 F (-25 to 105 C)
Storage Altitude	0 to 50000 ft
Country of Origin	China

Max Current	20 A
Cord Length	9.84 ft (3.00 m)
Width	9.06 in (23 cm)
Weight	1.57 lb (0.71 kg)
Operating Temperature Range	32 to 221 F (0 to 105 C)
Operating Altitude	0 to 10000 ft
Material & Compliance	RoHS Compliant, CSA and UL Listed, Lead Free, Prop 65 Warning, REACH SVHC Free, WEEE Compliant
