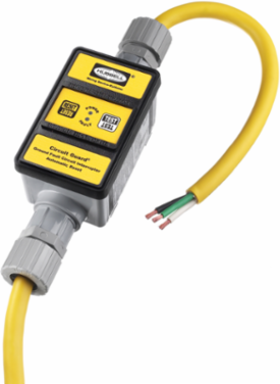

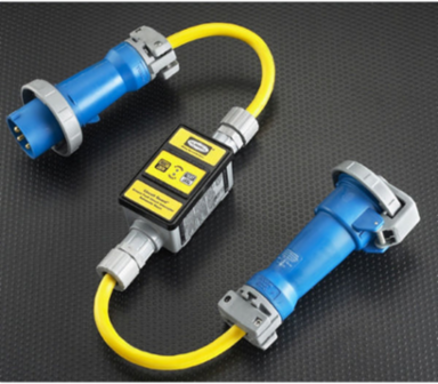

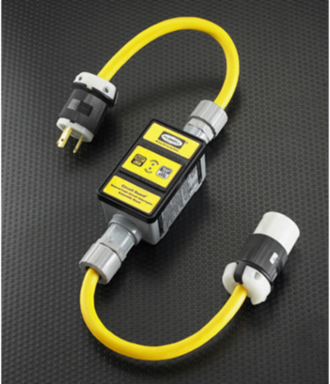

Hubbell Wiring Device-Kellems GFP3315 GFCI Portable Power Protection, 30A 120/240V AC, 6 Inch Cord Length, Yellow
- MPN: GFP3315
- UPC: 783585521213
- PPN: HBL-GFP3315
- UNSPSC: 26121536
CAD
$1704.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Products, GFCI High Amperage Portables, Industrial/Commercial, Auto Set, 30A 120/240V AC, 6' Cord Length, 4-6 mA Trip Level , Yellow.
Features
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 9.100 in |
| Performance | Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Meets UL943 Class A GFCI |
| Application | Line Cord Only No Devices |
| Conductor Size | #10 AWG |
| Outside Diameter | 0.335 |
| Standard | cCSAus |
| Temperature Rating | -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F) |
| Voltage Rating | 120/240 VAC |
| Voltage Rating Description | 120/240 VAC |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Conductor Type | Copper |
| Number Of Conductors | 4 |
| Class Code | A40 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A40A410 |
| Current Rating | 30 A |
| Material - Jacket | PVC |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 24.75 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 30 A |
|---|---|
| Industry Standard(s) | cCSAus |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Conductors | 4 |
| Special Features | Auto Set |
| Strands | Multi |
| Type | Portable, Straight Blade |
| Weight | 4.5 lb. |
| Engineering Drawing 1 Display Text | GFP3315 AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Connectivity | Plug-In |
| Style | Automatic Set |
| Description - Invoice | PORT GFCI, 30A 120/240V, AUTO, 6' |
| Harmonization Code | 8536308000 |
| MSDS Flag | No |
| Construction | Fabricated |
| Material - Insulation | Elastomer |
| Series | Extra Heavy Duty |
| BOX SIZE | 10.100x20.200x20.100 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585521213 |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
